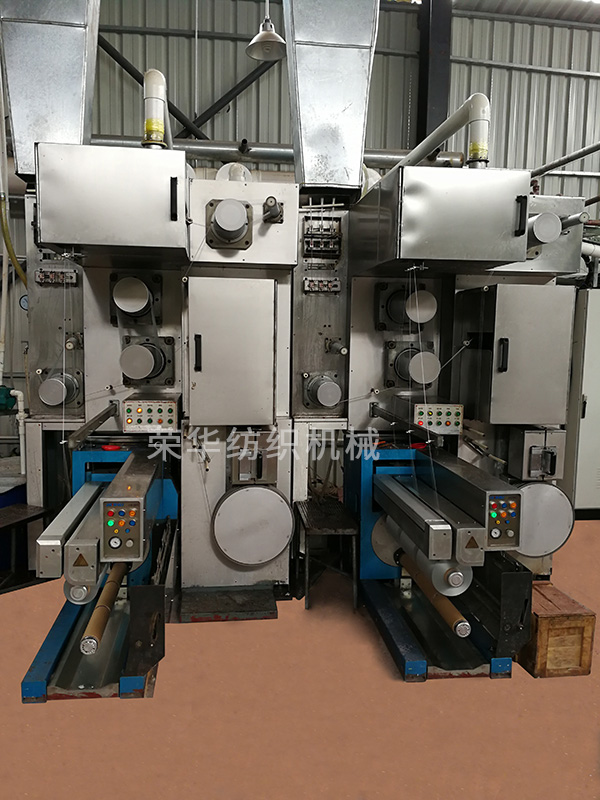

polypropylene BCF spinning machine
- The polypropylene BCF spinning machine adopts a special screw spinning machine, a spinning box with a high-efficiency static mixer and heat medium circulation heating, a rectangular spinning component on the top, a uniform side continuous and oiling system, a domestically produced equalizing heat roller, a bulking device, a network device and a domestically produced switching winder.
- Inquiry Now
- Description
Polypropylene Monochrome BCF Spinning Equipment: This equipment is mainly used to produce 1000D～3300D polypropylene expanded filament.
Filament use: carpet, decorative cloth, handicrafts, aluminum alloy sealing strips, hair silk, etc.
Equipment features: 1, low energy consumption. 2. The equipment runs stably with low failure rate and high output. 3. Easy operation and maintenance
Equipment model: RH-BCF2, RH-BCF3
PP BCF (monochrome and color) equipment
PP BCF spinning machine is mainly used for spinning equipment from 1000 to 3300 denier polypropylene bulked continuous filament. Its raw material is polypropylene slice.
PP BCF yarn mainly used for: carpets, industrial filter, and other fields.
The basic parameters of the device:
Finished fineness: 1000 to 3300 (Dan)
Mechanical speed (maximum): 3000m / min
Process speed (maximum): 1600m / min ~ 2000m / min
Parts per tow Number: 2,3 Beam
Equipment main components:
1, the automatic feeder
2, masterbatch injection machine
3, screw extruder
4, pre-filter (selected by the user)
5 spinning boxes and components
6, metering pumps and drive
7, the side hair, air conditioning units and corridor
8, oiling device, pre-network device
9, drawing heat roller
10, puffing, a cold drum
11, winding rack
12, the network device
13, automatic winding machine
14, electronic control system: with screw voltage control cabinet, spinning box temperature control cabinet, temperature-controlled cabinet drawing, drawing frequency counters, frequency counters and winding conventional electrical control system.
